RUBBER FATIGUE SIMULATION SOFTWARE

Engineers working with elastomers and rubber increasingly call on numerical simulation to solve design issues. Simulation provides a tried-and-true approach to evaluating design features before risking investment in physical evaluation. Endurica’s fatigue simulation software gives you the tools you need to analyze fatigue to get durability right, before you build and break.

Endurica’s fatigue solver shows how your design will endure in specific application scenarios.

Analyze fatigue performance of your Finite Element Model within all three major nonlinear finite element codes: Abaqus, ANSYS and MSC/MARC.

Wondering which solution will work best for your needs? Details can be found here in a side-by-side comparison of Endurica’s software solutions to help you Get Durability Right – download as .pdf by following this link: Compare Endurica Solutions

Endurica Solutions

Feature Grid

Material Models CL CL+DT EIE fe-safe/Rubber
Materials database x x x
Hyperelastic laws: Neohookean, Arruda-Boyce, Mooney-Rivlin, Reduced Polynomial, Van der Waals, Ogden x x x
Mullins Effect x x x

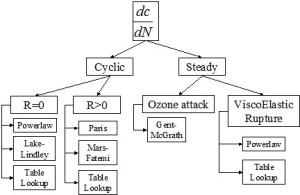

Crack Growth Rate laws: Thomas, Lake-Lindley, table-lookup x x x
Crystallization laws: None, Mars-Fatemi, table lookup x x x
Ozone attack, creep crack growth x x x
Temperature dependence: coefficient or table-lookup x x coefficient only
Hysteresis / Self-heating: powerlaw, Kraus, Table-Lookup x x NA
Procedures
Total formulation fatigue solver x x x
Rolling structures (ie tires) with axi- or cyclic- symmetry x x NA

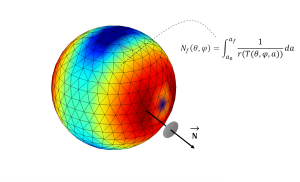

Critical plane analysis x x x
Rainflow counting w/time indices preserved for event identification x x x
Diagnostics: critical plane vector, load history on critical plane, crack open/close history x x x
Results Viewer x x Note 1
Incremental formulation fatigue solver x NA
Block cycle schedules / multi-step protocols x Miner’s rule only
Sequence effects x NA
Restart capability x NA
Stiffness loss cosimulation x NA
Residual life x NA
Digital Twin applications x NA
Nonlinear load/displacement->stress/strain map x
Auto-generation of FE model boundary conditions for map generation x
1,2 or 3 independent input channels x
Mapping methods: Case vectors, Spiral Grid, User-defined x
Accelerated strain history generation x
Multi-threading / parallel processing Note 2 Note 2 x x
Supported 3rd Party Codes
Abaqus x x x x
Ansys x x x
MSC/Marc x x x
fe-safe/Rubber x
Licensing
Node-locked x x x Available only through Dassault Systems
Network floating x x x
Annual lease x x x
Perpetual x x x
Maintenance and Support x x x
Multi-Site, Multi-Country, Global x x x
Note 1 – Available as free download from Endurica for licensed fe-safe/Rubber users.

Note 2 – Multi-threading for CL and DT currently available only via input file splitting procedure.                                                       2019-08



Benefits

  • Save the costs of build and break experiments for well-qualified designs.
  • Quickly see how changes to material behavior, part geometry, or load history influence fatigue life.
  • Inform design decisions with a patented tool that has been continuously developed for more than a decade, and successfully validated against a wide range of benchmarks and real-world problems.
  • Find out where your part might develop a crack, how long it can be expected to endure, which events are damaging and which are harmless.
  • Communicate effectively about durability issues with realistic, physics-based presentation of simulation results.

Endurica’s software is the first (and only) commercial FEA software to predict when and where cracks will show up in an elastomer product with complex loading history and geometry. Endurica’s methods are in use across the globe by many industry sectors including aerospace, automotive, consumer products, defense, heavy equipment, medical devices, offshore, and transportation.
